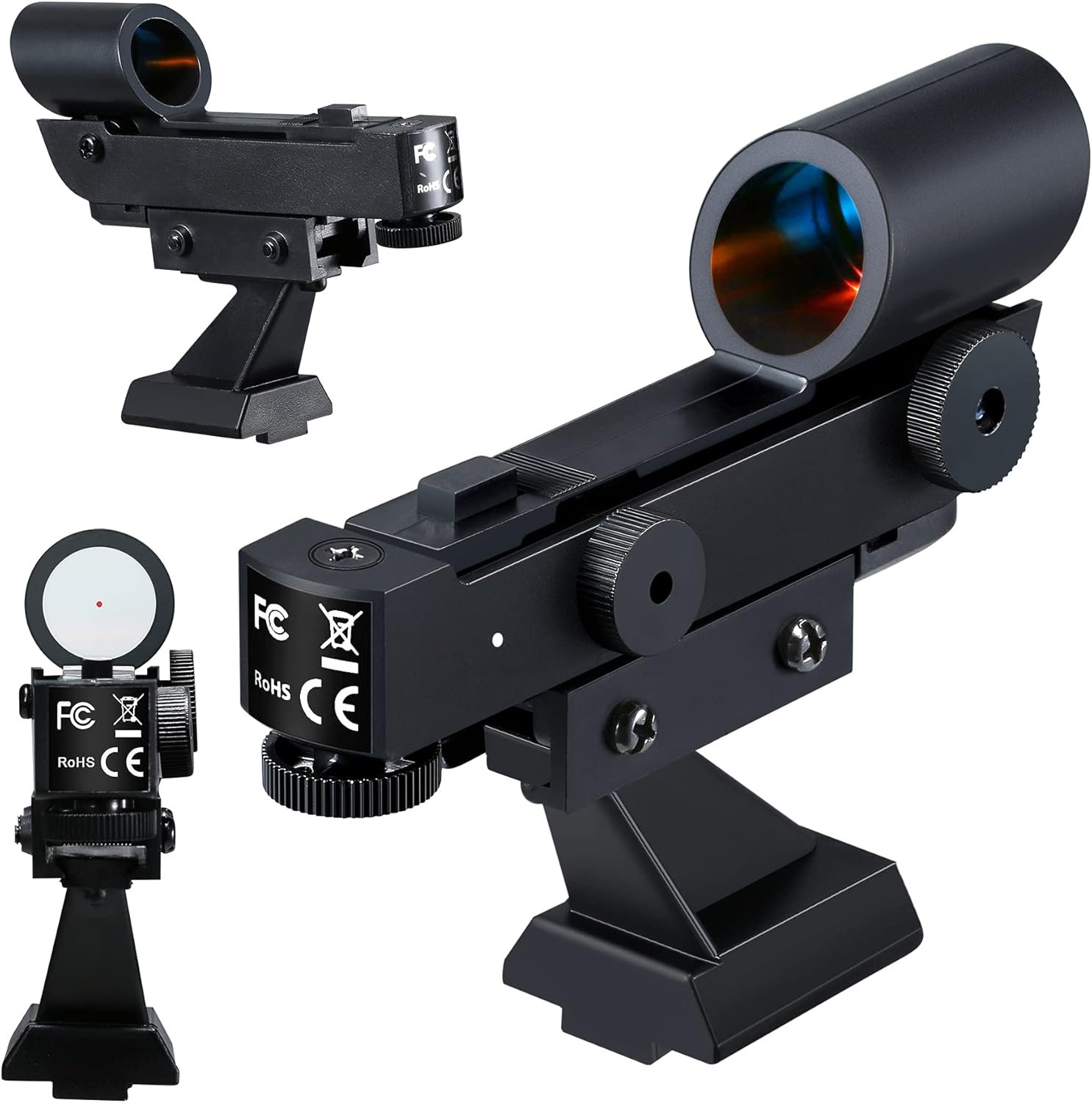

Brightness Red Dot Finderscope, Star Pointer Viewfinder Astr…

Product description

Instructions and Support

How to use

pull out the clear plastic sheet that is at the front and on the bottom .This allows the battery to make contact so that the red dot appears when you switch it on.

Look through the hole at the front of the finder and you should see the red dot and be able to make it brighter or dimmer by using that rotary control which is also the on/off switch.

Adjust the finder so that the red dot is exactly on the object you were looking at. You can adjust it by using the two larger wheels. The one on the right at the front does the left/right direction and the one at the back on the bottom does the up and down.

You now use it by switching the finder on, then looking through the finder so that the red dot lines up on to the target you are going to observe through your telescope. Once the red dot is exactly over the star or planet it should be exactly in the center of your eyepiece view.

Remember to switch it off once you have found your target to save the battery.

Dovetail Slot Features

Solid all metal construction ultra-thin design, ultra-light weight

It can be installed to: Celestron C8, C8HD, C925, C11HD, SKYRVER: 80ED, 102ED, 130APO, SKYRVER 100ED binoculars, and other primary mirror, can be fitted to the sharpstar, Celestron another model

Length: along the 34mm

Width of internal slot: 4.2mm

Horizontal length of internal slot:36.5mm

Vertical length of internal slot: 36.5mm

Also you can remove the dovetail adapter for fitting on to Celestron Nextstar SE mounts and the Celestron RSR binocular tripod adapter.

Features

High quality of materials.

Simple, affordable, and effective red dot sighting device makes aiming your telescope

Very easy to adjust. Thumbwheels allow positioning of the red dot horizontally and vertically for precise telescope alignment

An adjustable small red LED dot is projected onto a non-magnifying viewing window so you can aim the main telescope quickly and easily

Easy to Use: This finder scope red dot sight comes with an adjustable that LED dot is projected onto a non-magnifying viewing window. It's easy to find the red dot because it contrasts well with the color of the lens material. So you can aim the main telescope quickly and easily.
Adjustable red dot brightness: The star pointer brightness of the red dot is adjustable to different environments. It is bright enough to use during the day or night.
Suitable for Most Astronomical Telescopes: Includes bracket that fits the dovetail mounting base on many telescopes; with a long-lasting CR2032 3V battery to ensure working life.
Simple to Install: Red dot sighting device aiming your telescope is effective. Adjustment knobs work well, you evened up the finder with the adjustment knobs before you put it on your telescope. It was a breeze dialing it in.
Quality Assurance: We provide a one-year after-sales guarantee. If you have any questions, please email us firstly. We will help you immediately.
