20 Gallon Fresh or Gray Water Holding Tank Manufactured by Class A Customs - Made from NSF Approved Materials - Fresh & Drinking Water Safe - Can be used for Fresh or Gray Water Storage

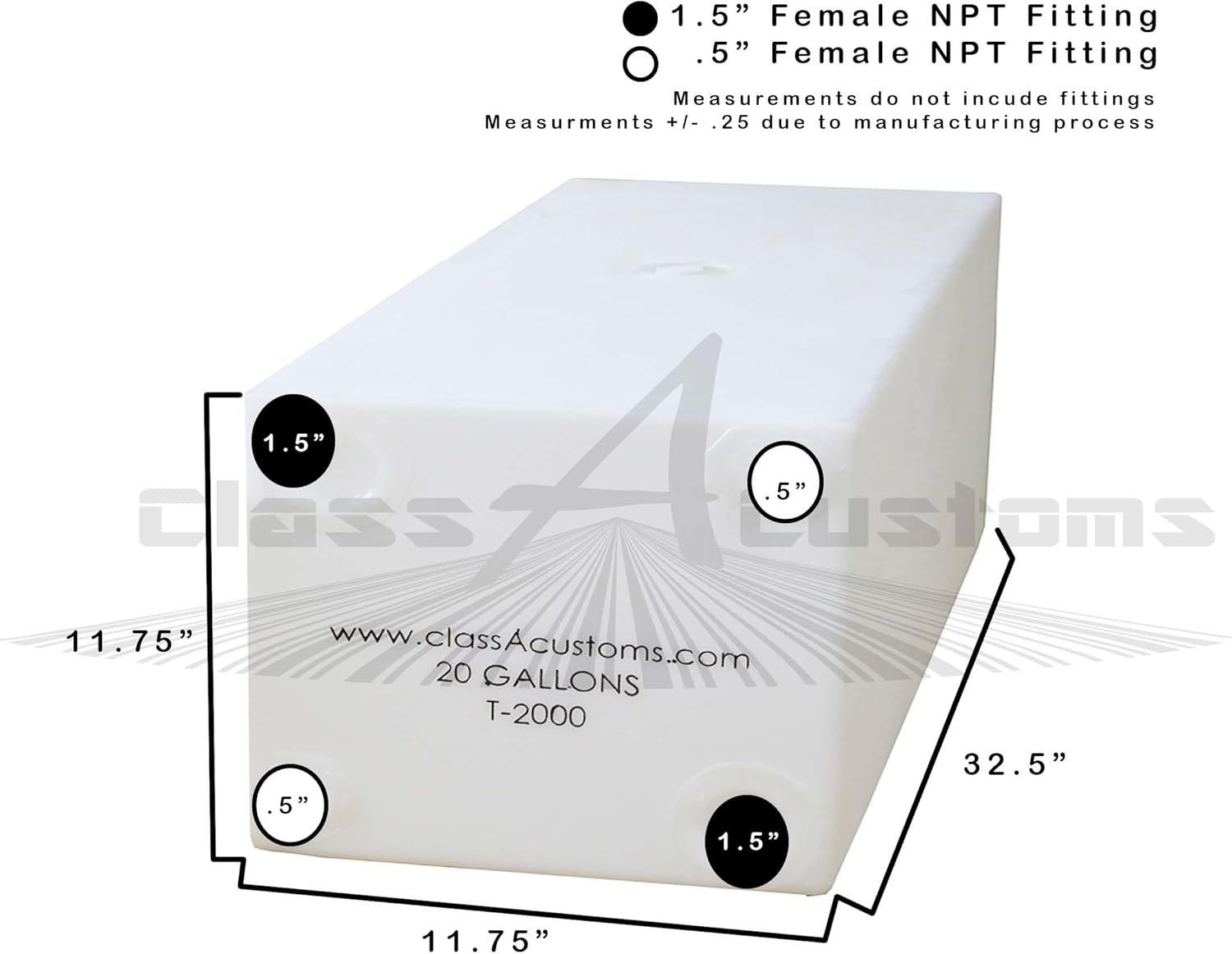

WATER TANK MEASUREMENTS: 32 1/2" Longest Length (not including fittings) x 11 3/4” x 11 3/4” - Tank can sit on any side - rotate tank to change height or width Average Thickness 7/32” +/- Please view photos. (Due to the manufacturing process +/- .25" on each measurement)
TANK BUILT-IN FITTINGS: (TWO) 1.5" Female NPT Fitting - fitting is sealed and watertight, to use remove membrane with razor knife (TWO) .5" Female NPT Fitting - fitting is open DO NOT over-tighten fitting damage will occur, use plastic connecting fittings as metal will damage threads.
NON-PRESSURIZED TANK: tank must be vented allowing air in and out during use. DO NOT make a sealed connection with a garden hose directly to tank, this is a pressurized connection and will cause tank to explode causing damage. For filling tank it is recommended to use a fill dish or other gravity process.
BASIC PLUMBING KIT INCLUDES - (TWO) 0.5” Hose Barb to 0.5” Male Pipe Thread Adaptor (FOUR) 0.5” Hose Clamp (ONE) 1.25” Hose Barb to 1.5” Male Pipe Thread Adaptor (TWO) 1.5” Hose Clamps (ONE) 1.5” Male Pipe Thread PVC Male Adaptor (ONE) 5ft. Section of 0.5” ID Vent/Draw Hose (ONE) 5ft. Section of 1.25” ID (1.375” OD) Fill Hose
As an Amazon Associate, I earn from qualifying purchases.
Price: $128.99
(as of May 25, 2026 14:28:15 UTC – Details)
