Product description
Max Power at STC 200W Open Circuit Voltage 36.5V Short Circuit Current 6.86A Optimum Operating Voltage 31.3V Optimum Operating Current 6.38A Maximum System Voltage 1000VDC Maximum Series Fuse Rating 15A Module Efficiency 20.7% Operating Temperature -40°F~185°F / -40℃~85℃ Dimensions 1262*764*30mm/49.69*30.08*1.18inch Weight 10.81kg/23.83lb
Is ShadowFlux designed for a 12V or 24V system?
ShadowFlux features a high open-circuit voltage of 36.5V and is compatible with both 12V and 24V battery systems. However, in partially shaded conditions(from trees, debris, or boat masts), a 12V system provides much better stability and reliability.
What kind of charge controller do I need for ShadowFlux?
Use an MPPT charge controller for best performance. MPPTs are more efficient and use full panel voltage even in low light. Some PWM controllers may fail, so MPPT is safer.
Recommended specs:
Max Input Voltage: ≥ 50V
Charging Current: > 10A
How ShadowFlux outperforms under real-world shadows?
Traditional solar panels can lose all power from just one shaded cell. ShadowFlux is built to handle real-world shadows, keeping you generating when others can’t. It delivers much higher output with far less power loss under the same shading.
What kinds of shading is ShadowFlux designed for?
ShadowFlux’s advanced cell tech cuts power loss in all common shading cases: small spots (Bird droppings,leaves,mud), lines (wires,rigging), patches (vents,branches), and moving shadows. For best results, keep over half the panel in direct sunlight.
What do I need to complete my off-grid solar power system?
To set up an off-grid solar system, you need a solar panel, a charge controller to regulate current, and a battery to store power. Also, use adapter kit cables for connections and tray cables for the deep-cycle battery.
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.2 out of 5 stars 1,812
4.6 out of 5 stars 7,113
4.6 out of 5 stars 1,065
4.4 out of 5 stars 1,513
4.6 out of 5 stars 1,065
Price
$201.99$201.99
$159.99$159.99
$153.84$153.84
$234.80$234.80
$159.99$159.99
Maximum Power
200 Watts
200 Watts
100 Watts/PC
200 Watts
175 Watts
Cell Type
N-Type Cell
N-Type Cell
N-Type Cell
PERC Cell
N-Type Cell
Features
ShadowFlux & N-Type
N-Type
N-Type
Lightweight & Flex
N-Type
Anti-shading Tech
Cell-level Shadow Tech
Bypass Diodes
Bypass Diodes
Bypass Diodes
Bypass Diodes
Cell Efficiency
25%
25%
25%
22%
25%
Busbar
16BB
16BB
16BB
9BB
16BB
Protection Rating
IP 67
IP 67
IP 65
IP 67
IP 67
Maximum System Voltage
1000VDC
600 VDC
600VDC/PC
600VDC
600VDC
Dimensions
49.69 x 30.08 x 1.18 in
49.7x30.1x1.2in
34.1 x 22.8 x 1.2 in/PC
63.2 x 29.5 x 0.12 in
43.7x30.1x1.2in
Weight
23.83 lbs
23.4lbs
13 lbs/PC
10.8 lbs
21.2lbs
ShadowFlux Anti-Shading Technology - Renogy shadowflux technology delivers enhanced power generation even in shaded areas caused by buildings, plants, or stains. This 400w solar panel innovative shadowflux anti-shading tech significantly reduces hot-spot risks, ensuring reliable power output and peace of mind.

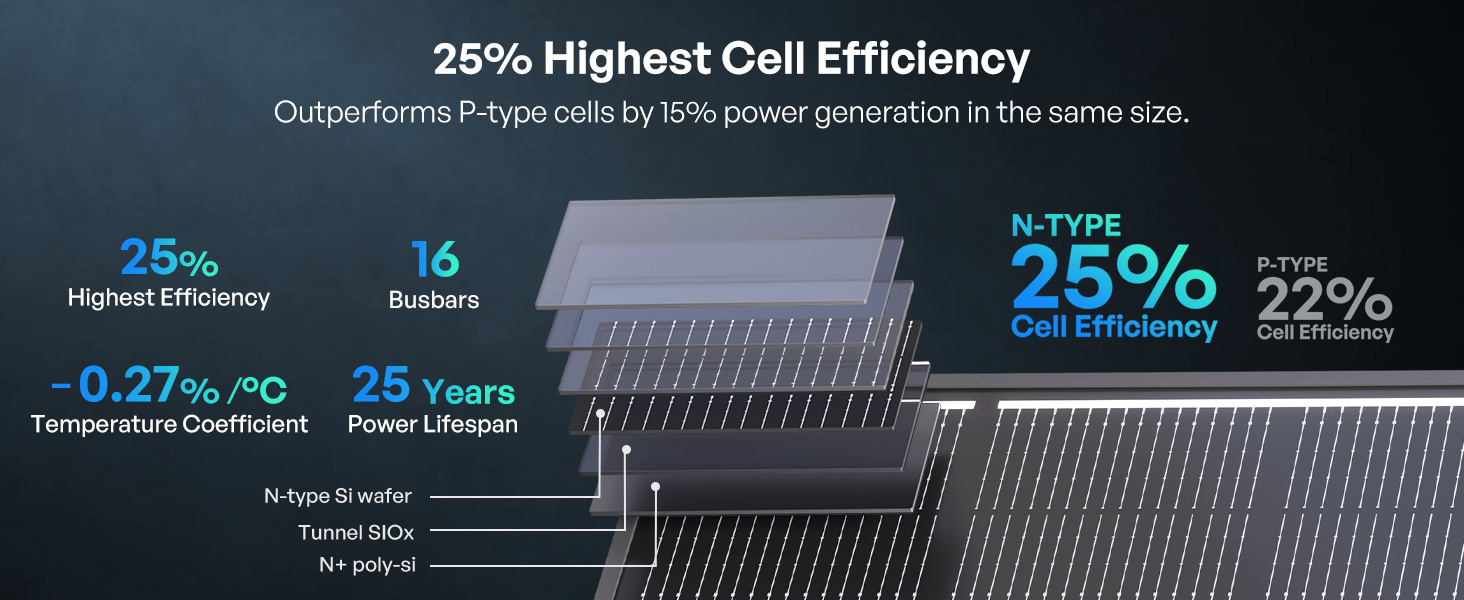

Unmatched Cell Efficiency - Featuring advanced N-Type solar cells with 16BB technology, renogy shadowflux solar panels achieve 25% efficiency. The 400 watt solar panel enhances photoelectric conversion while reducing hot spots and micro-cracks, ensuring longer lifespan and superior performance.
Compact and Lightweight Design - Renogy 400 watt solar panels are 7% smaller and 10% more compact than PERC solar panels, making it an ideal choice for space-saving applications.
Superior Environmental Endurance - With an ≥ IP67 rating, renogy solar panels are built to endure extreme weather conditions, from snow and rain to small hail. Its advanced encapsulation material enhances water vapor resistance, providing long-term durability.
Long-Term Reliability - The 2pcs shadowflux solar panel 200w is backed by a 5-year on materials and craftsmanship, complemented by a 25-year output ensuring 80% power output.
