Product Description
1 Grade A+ Solar Cells
2 Premium Material
3 Withstand All Weathers
1 For RVs
2 For Camper Vans
3 For Off-roaders
4 For Cabins
5 For Boats
Max Power at STC 100 Watts Open Circuit Voltage 22.3 V Short Circuit Current 5.86 A Optimum Operating Voltage 18.6 V Optimum Operating Current 5.38 A Cell Efficiency 22% Operating Temperature -40°F to 176°F(-40℃ to +80℃) Dimensions 42.4 x 20.0 x 1.4 in Weight 14.3 lbs (6.5 kg) Panel Leads (Pair) 14 AWG (1.96 ft) Module Efficiency 18.1% Maximum Series Fuse Rating 15A Cell Type Monocrystalline Number of Cells 33 (3 x 11) Front Glass Tempered Glass 0.13 in (3.2 mm) Frame Anodized Aluminium Alloy
What does the 12V/24V in the product title of the solar panel mean?
The 12V/24V in product titles (ex. 100W 12V Monocrystalline Solar panel) does not refer to the actual voltage (Voc or Vmp) of the solar panels, but rather to the voltage of the solar system or energy storage system to which the panel is best suited.
Why is it different from the value on the label/specification sheet of the solar panel?
The voltage of the solar panel must be higher than the solar system voltage.
What equipment does an off-grid solar system require?
Here’s a list of all the equipment required for a functioning off-grid solar system: Solar panels, Solar charge controller, inverter(s), battery, mounting and racking system, wiring cables and fuses.
Why are my solar panels underproducing?
The performance of a solar panel may be hindered for many reasons. Most commonly environmental conditions, such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass, which can lead to a lower efficiency.
Will this panel produce power in overcast conditions?
Yes, it will. Made of high-quality materials, this Renogy solar panel still works during cloudy weather conditions. But please note that the power conversion is not as high as on sunny days.
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.6 out of 5 stars 7,127
4.6 out of 5 stars 7,127
4.6 out of 5 stars 7,127
4.6 out of 5 stars 1,445
4.2 out of 5 stars 556
4.1 out of 5 stars 24
4.4 out of 5 stars 1,408
Price
$76.49$76.49
$158.79$158.79
$169.99$169.99
$76.49$76.49
$239.99$239.99
$223.49$223.49
$279.99$279.99
Maximum Power
100 Watts
2 PCS 100 Watts
200 Watts
100 Watts
200 Watts
250 Watts
200 Watts
Cell Type
Monocrystalline
Monocrystalline
Monocrystalline
N-Type 16BB
N-Type 16BB
N-Type 16BB
Monocrystalline
Panel Type
Rigid Panel
Rigid Panel
Rigid Panel
Rigid Panel
ShadowFlux Anti-Shading Panel
Bifacial Panel
Flexible Panel
Cell Efficiency
22%
22%
22%
25%
25%
25%
22%
Dimensions
41.8 x 20.9 x 1.4 in
41.8 x 20.9 x 1.4 in/PC
58.7x27.5x1.38 in
34.1 x 22.8 x 1.2 in
49.69 x 30.08 x 1.18 in
60.9 x 30 x 1.2 in
63.2 x 29.5 x 0.12 in
Weight
14.1 lbs
14.1 lbs/PC
26.46 lbs
13 lbs
23.83 lbs
33.9 lbs
10.8 lbs

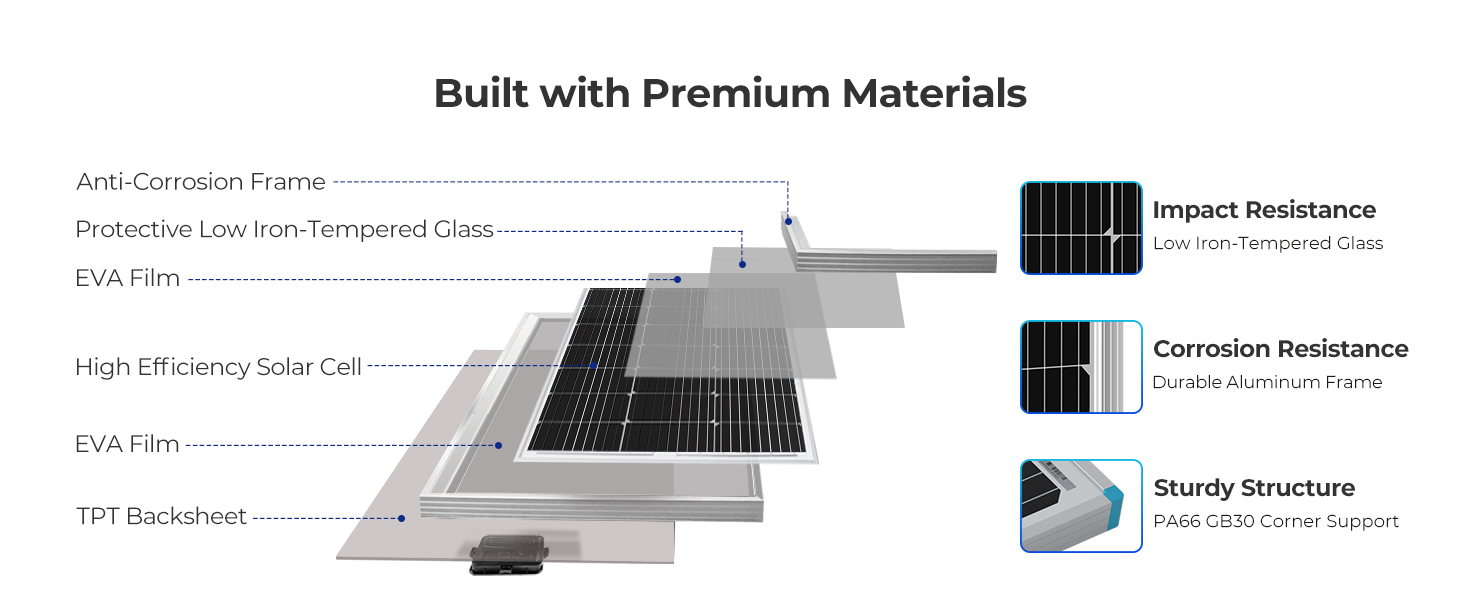

Superior Quality and Material - All Renogy solar panels are made from 100% EL-tested Grade A+ solar cells to provide the highest power conversion efficiency and prolonged lifespan. This 100 watt solar panel is also equipped with PERC cells to deliver an excellent cell efficiency of 22%.
Advanced Solar Cell Tech and Panel Structure - Renogy solar panels adapted the newest 9 Bus-bars cell tech and Half-cell structure, allowing the full-size solar cell to be cut in half and closely arranged for space usage maximization. Increase the cell receiving surface while reducing current and resistance loss with a thinner ribbon design.
Built to Last - This all-weather monocrystalline solar panel can handle snow, rain, and heat for decades with IP65 protection. Renogy uses low iron-tempered glass and corrosion-resistant aluminum frames with polyamide corner support to ensure this panel solar can perform and withstand all weather conditions.
Fast and Easy Installation - 20 pre-drilled holes on the back of the solar panels 100w allow for quick mounting, which is ideal for off-grid applications and are directly compatible with Renogy ground mounts, Z Brackets, Corner Brackets, Pole Mounts, and Tilt Mounts.
Compact and Reliable - The 100W 12V Monocrystalline solar panel delivers a stable output of an average 500Wh of electricity per day (depending on sun availability). With its compact solar cell arrangement, this renogy 100w solar panel weighs only 14.1 lbs and is 8-10% lighter and smaller than conventional rigid solar panels.
Proven Durable Quality - 10-Year Workmanship Warranty. Over 80% Output at 25 Years.
